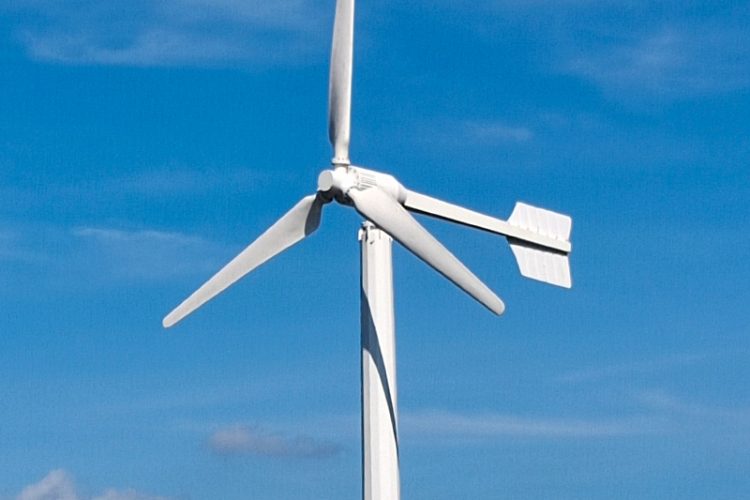

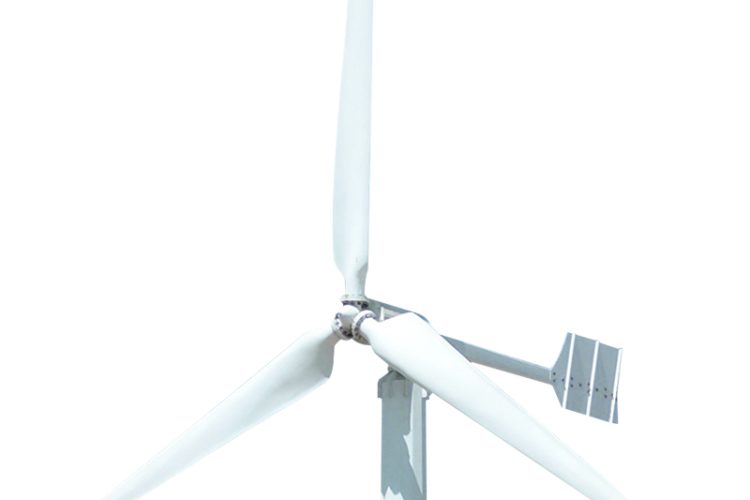

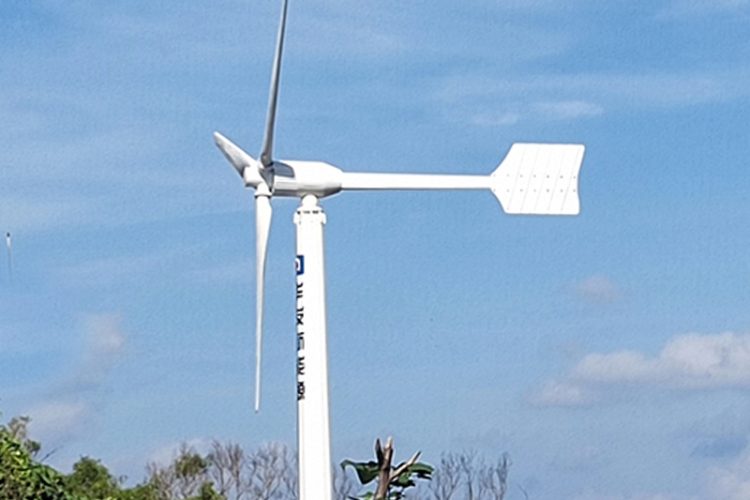

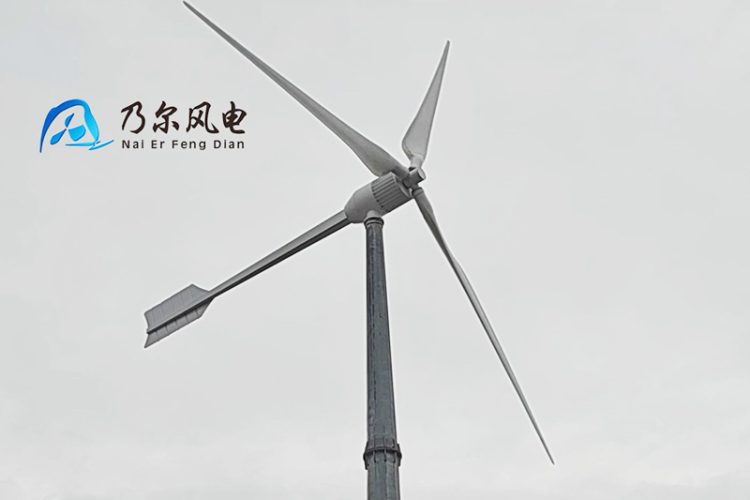

10kW active pitch controlled wind turbine, off grid energy storage connected to the grid, shipped by the manufacturer
● Intelligent mechanical brakes, electromagnetic brakes, and automatic side deviation with independent intellectual property rights of the company provide multi-level safety protection, ensuring the safe and stable operation of wind turbines in extreme weather conditions based on real-time monitoring data.● The motor housing is cast in one piece using aluminum profile molds, with good heat dissipation and…
Power: |
10kW |
---|---|
System Type: |
Horizontal wind turbine |
-
Start-up wind speed1.2m/s
-
Working wind speed1.8-20m/s
-
Rated wind speed8.4m/s
-
Rotor diameter8m
-
Blade3pcs reinforced fiber glass
-
Blade length3.8cm
-
Rated RPM170r/m
-
Weight420kg
-
Rated voltageAC 220/240/380v
-
Generator type3-phase AC PMG
● Intelligent mechanical brakes, electromagnetic brakes, and automatic side deviation with independent intellectual property rights of the company provide multi-level safety protection, ensuring the safe and stable operation of wind turbines in extreme weather conditions based on real-time monitoring data.
● The motor housing is cast in one piece using aluminum profile molds, with good heat dissipation and light weight; The cabin is made of high-strength alloy steel molds cast in one piece, with excellent anti-corrosion measures, high mechanical performance and durability. The tail wing adopts a folding tail design, which can automatically tilt towards the wind according to different wind directions, with stronger anti typhoon ability and safe and reliable operation.
