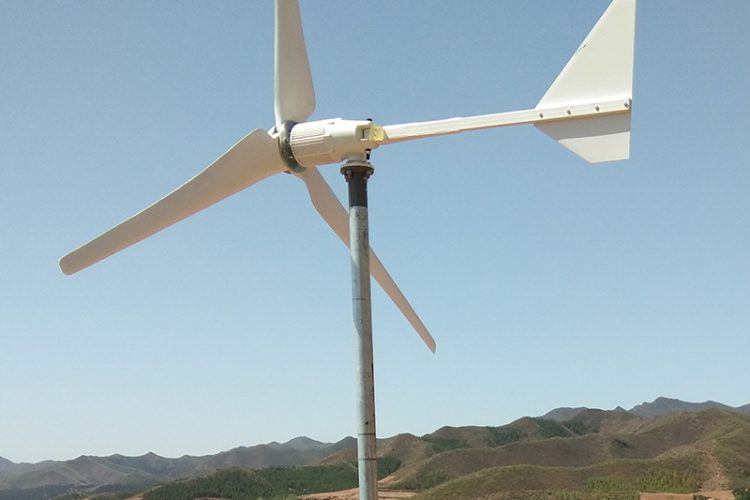

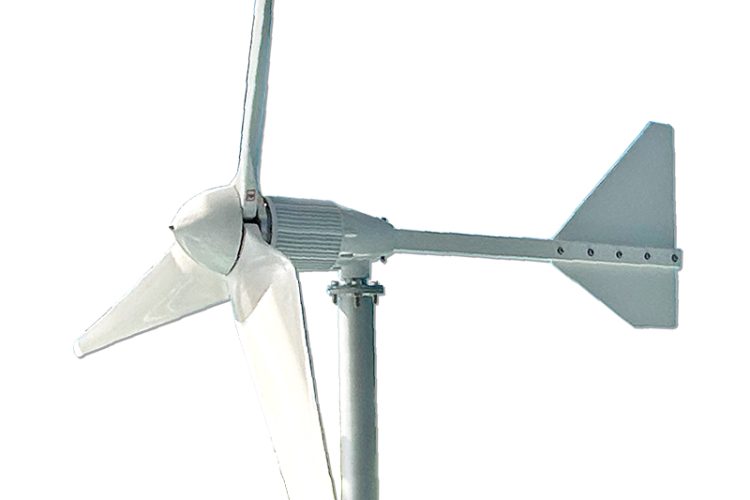

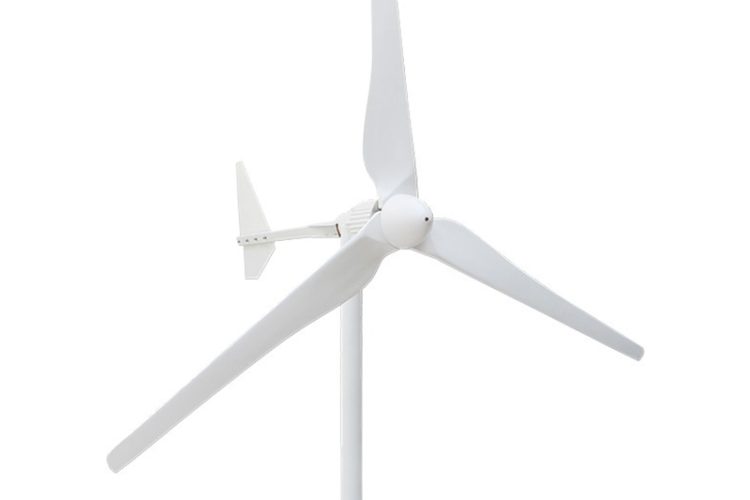

3kW dedicated horizontal axis wind turbine for household use, shipped by the manufacturer
● Adopt low speed permanent magnet generator, direct drive gearless transmission design. ● Having CE, ISO9001 multiple certifications and multiple intellectual property patents. ● The wind turbine blades are formed through precision manufacturing using a new process, with optimized aerodynamic shape design and structural design, easy installation, high utilization coefficient of wind energy, increased annual…
| Power: |
3000W |
|---|---|
| System Type: |
Horizontal Wind Turbine |
-
Start-up wind speed2m/s
-
Working wind speed2-18m/s
-
Rotor diameter3.7/4m
-
Swept area17.34m²
-
Blade3pcs reinforced fiber glass
-
Blade length180/195cm
-
Shell materialCasting aluminum alloy
-
Rated RPM333r/m
-
Rated voltageDC48/ 96/120/240V
-
Suggested battery capacity4pcs 250Ah/12VDC
● Adopt low speed permanent magnet generator, direct drive gearless transmission design.
● Having CE, ISO9001 multiple certifications and multiple intellectual property patents.
● The wind turbine blades are formed through precision manufacturing using a new process, with optimized aerodynamic shape design and structural design, easy installation, high utilization coefficient of wind energy, increased annual power generation.
