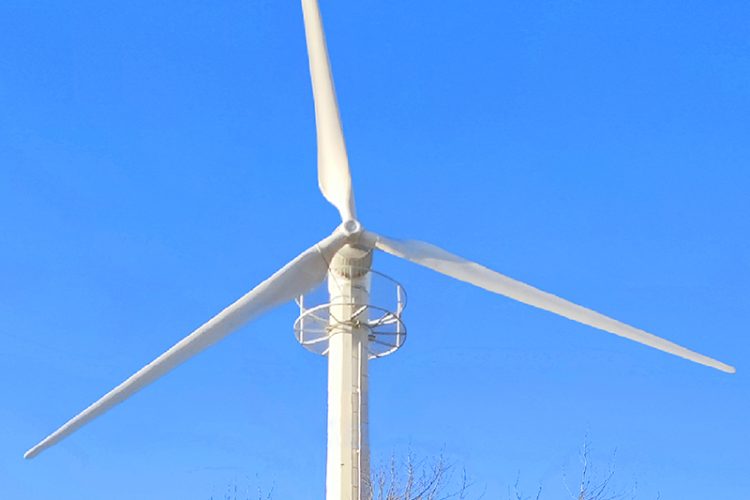

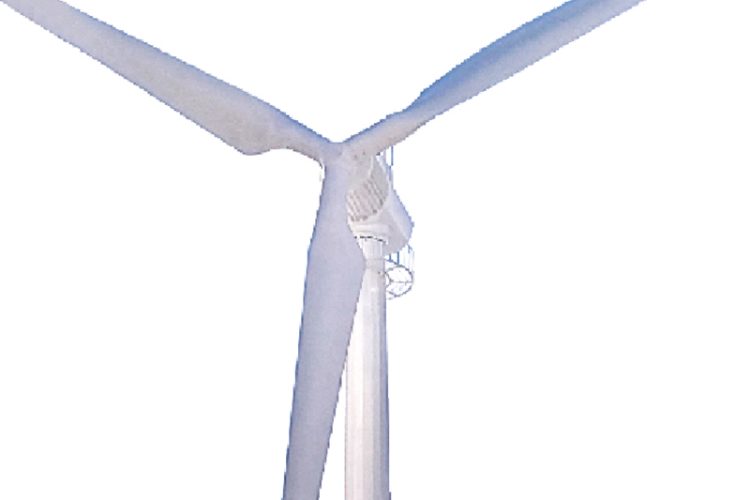

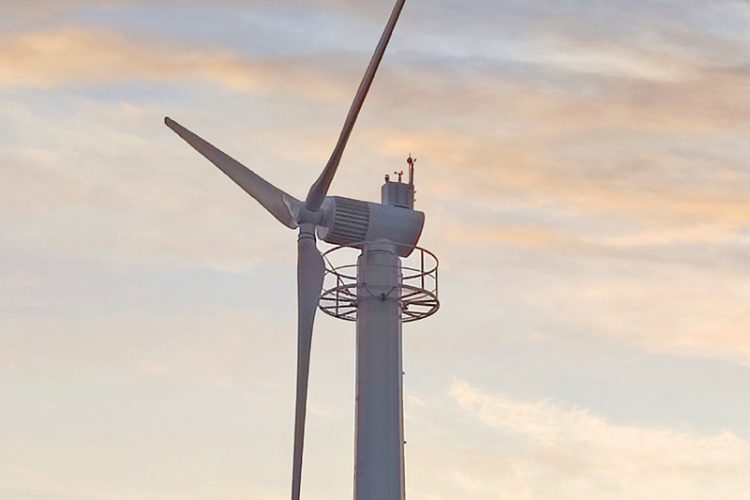

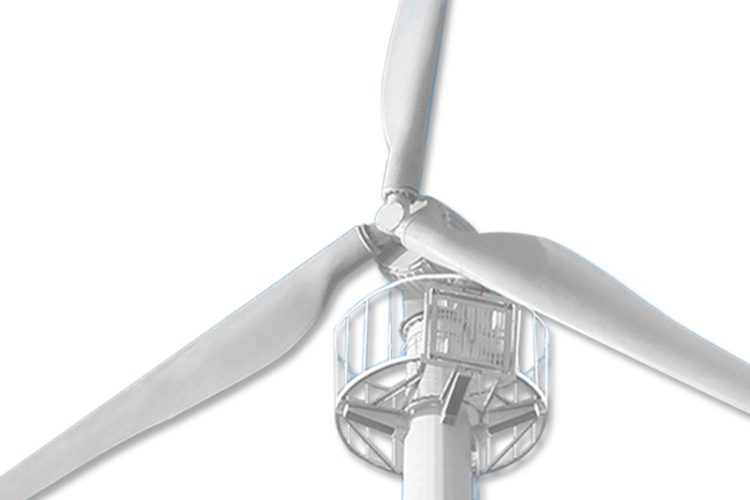

75kW Three bladed Permanent Magnet Direct Drive Small and Medium sized Wind Turbine Manufacturer Horizontal Axis Yaw
●Excellent power output performance.High efficient synchronized PMG generator with low starting torque. Lower RPM rotational speed avoid the risk of over speed malfunction and bring lower noise emission ●Dual brake ,yawing, mechanical brake protection systems as reliable passive self‐furling and electromagnetic brake. Equipped with high quality NSK brand sealed bearing
| Power: |
75kW |
|---|---|
| System Type: |
Horizontal wind turbine |
-
Start-up wind speed2m/s
-
Working wind speed2.5-20m/s
-
Rotor diameter18.58m
-
Swept area254.34m²
-
Blade3pcs Fiberglass-reinforced
-
Blade length9m
-
Rated RPM50r/m
-
Weight4300-4500kg
-
Generator type3-phase AC PMG
-
Rated voltageAC 380V
●Excellent power output performance.High efficient synchronized PMG generator with low starting torque. Lower RPM rotational speed avoid the risk of over speed malfunction and bring lower noise emission
●Dual brake ,yawing, mechanical brake protection systems as reliable passive self‐furling and electromagnetic brake. Equipped with high quality NSK brand sealed bearing
